Application：

Available Wire Dia.：0.2~1.5 Mm

Coil Dia.：Max.240 Mm

R.P.M：Max. 2500 Rpm

Program Memory：200 Kinds Of Specifications  Can Be Set Up

Specifications：

Operation Method：1hp/4p Induction Motor

Motor：Single Phase，220v/60hz/50hz

Dimension：1500(L)×1500(W)×1800(H) Mm

Weight：400 Kgs

Function：

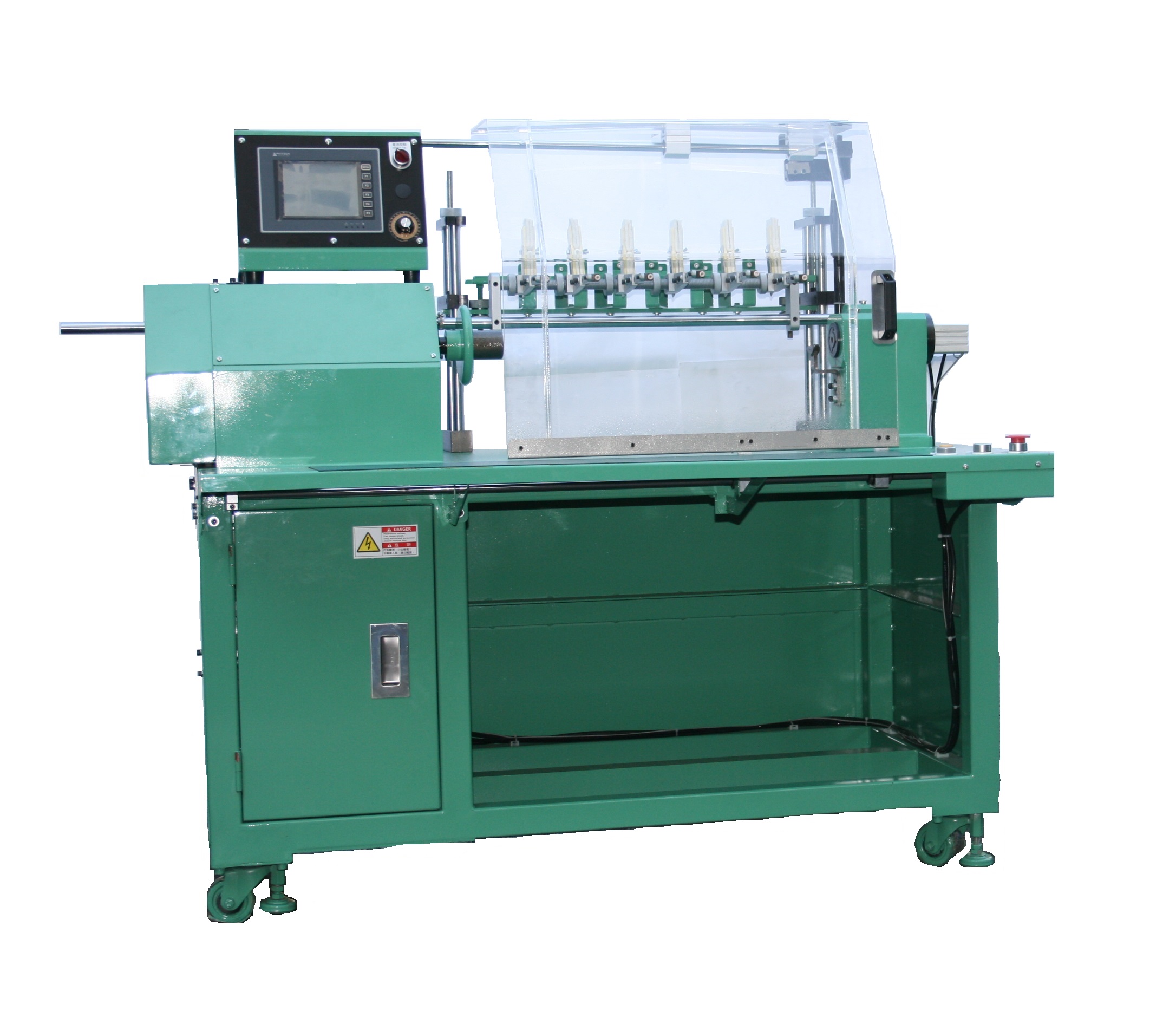

The winding machine is suitable for minimum winding 24 pcs of coils simultaneously. The feeding speed of wire arrangement can be selected simultaneously according to diameter of wire or any pre-set speed.

Features：

1. This machine is equipped with man servo program controller and it’s good, durable, stable and safe for control procession.

2. A battery-free design is equipped for the interior memory system of microprocessor to avoid inconvenience of battery life limitation.

3. Feeding speed is adjustable automatically according to wire diameter.

4. The speed of main spindle can be adjusted continually.

5. There are 99 sets of single coil and 99 sets of more coils in memory function.
