Application：

Stator I.D.：30~120 mm

Stator O.D：Max. 120/160/190 mm

Stack Height：Max. 40/80/120/150 rpm

Number Of Slots：8~36 Slots

Specifications：

Operation Method：AC Motor

Motor：3phase，0.4 Or 0.75 kw

Dimension：900(L)×900(W)×1000(H) mm

Weight：320 kgs

Function：

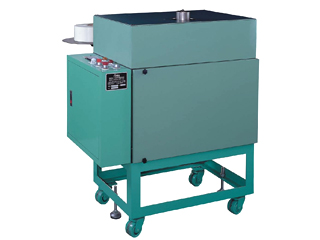

This machine is specially designed for slot cell paper insertion of medium and small size stator. All procedure are done by the machine automatically except to put on and take off stator. The complete inserting time for 24 slots stator can be shorten to 12 sec/stator. The production cost will be highly reduced by decreasing the material loss and labor cost.

Features：

1. High insertion speed (about to 0.5 sec/slot), labor saving, cost reduction, and stable quality output.

2. Easy adjustment while changing stack height of stator or width of insulating paper.

3. Change tooling design to meet different shape of stator slots.
