Application：

Stator I.D.：70~150 mm

Stator O.D：Max. 100~260 mm

Stack Height：Max. 300 mm

Number Of Slots：8~36 Slots

Specifications：

Operation Method：AC Motor

Motor：3phase ， 0.75kw

Dimension：According To The Specification Of Stator

Weight：According To The Specification Of Stator

Function：

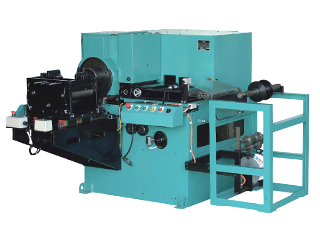

This machine is specially designed for insulating paper insertion of large and middle size stator. Except to put on and take off stator, all procedure are done by the machine automatically. The large size stator is able to be put in and taken off automatically after inserting. Also it can stick the tape on side of up and down of slot according to customer’s request. Therefore, the production cost will be highly reduced by decreasing the material loss and labor cost.

Features：

1. High insertion speed (about to1 sec/ slot), labor saving, cost reduction, and stable quality output.

2. Easy adjustment while changing stack height of stator or width of insulating paper.

3. Change tooling design to meet different shape of stator slots .
