Application：

Stator I.D.：30~120 mm

Stack Height：Max. 140 mm

Specifications：

Operation Method：Hydraulic

Motor：3phase  1.5 kw

Dimension：900(L)×1000(W)×2000(H) mm

Weight：400 kgs

Function：

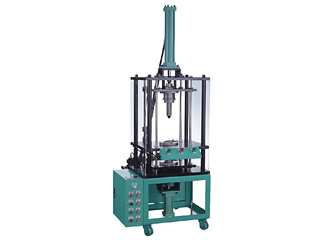

The machine is suitable for forming up the small to medium size stator coil. Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement, especially suitable for the difficult rearrangement of 2 poles stator.

Features：

1. Vertical design minimizes the space requirement.

2. One step operation reduces moving cost.

3. Molds are applicable to different stack height of stators.
