Application：

Medium and Large Size Stator

Stator I.D.：70~150 mm

Stack Height：50~300 mm

Specifications：

Operation Method：Hydraulic

Motor：3 Phase，1.5 kw

Dimension：According To The Specification Of Stator

Weight：According To The Specification Of Stator

Function：

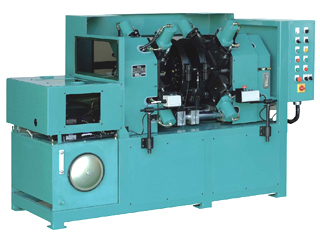

The machine is suitable for forming up the large to medium size stator coil. It can be the requested size by the principle of in-spreading and out-shrinking in internal shrinking membrane and external shrinking membrane. Especially, it’s suitable for forming the two poles of coil with high difficulty.

Features：

1. It’s easy for big stator to put on and take off due to horizontal-type.

2. The tooling is suitable for different stack height of stator.
