Application：

Stator I.D.：70~150 mm

Stack Height：50~300 mm

Specifications：

Operation Method：Hydraulic

Motor：3 Phase， 5 HP

Dimension：1150(L)×1300(W)×2900(H) mm

Weight：900 kgs

Function：

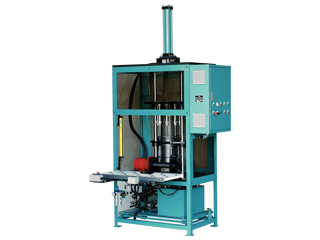

The machine is suitable for forming up the small to medium size stator coil. Reaming started going to the finished line of the stator do initial integer.

Features：

1. Vertical design minimizes the space requirement.

2. One step operation reduces moving cost.

3. Molds are applicable to different stack height of stators.
