Application：

Stator I.D.：100~150 mm

Stator O.D：Max. 260 mm

Stack Height：Max. 300 rpm

Number Of Slots：8~36 Slots

Specifications：

Operation Method：Pneumatic & Motor

Motor：3 Phase  0.75 kw

Dimension：1570(L)×710(W)×1750(H) mm

Weight：690 kgs

Function：

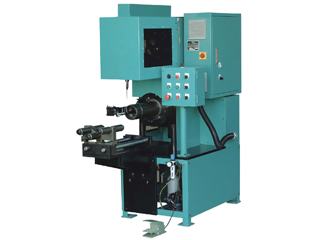

The machine is suitable for lacing for large size stator and horizontal-type. It’s very convenient for stator to be put on and taken off.

Microprocessor in this machine ensures it to be suitable for different kind of lacing function. The tension device to adjust the lacing tension is also equipped. Laced coil in the shape of tortoise shell increases the lacing efficiency.

Features：

1. The range of lacing is suitable for large size stator.

2. Neat and uniform bind coil stabilizes quality output and increases product value.
