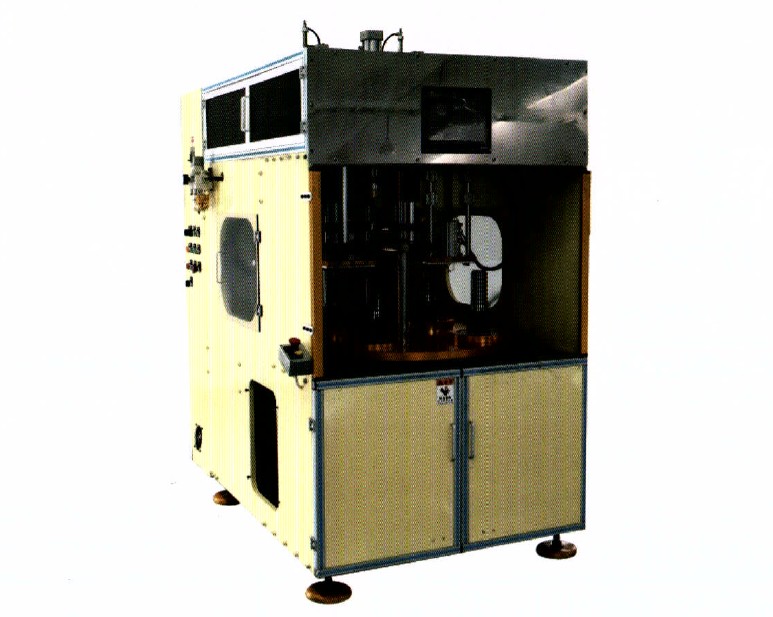

Auto coil winding & inserting machine- TOM-100

Application

Suitable for stator inner diameter(MM):30-90

Stator height (MM): 30-120

Suitable slot fill rate: < 80%

Winding station unit: 2

Coil inserting station: 1

Copper wire diameter (MM): 0.1~ 1

Number of turns in multiple wires: 4

Max. winding speed: 2000RPM
